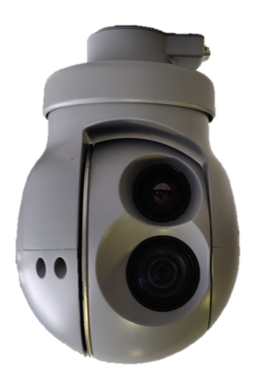

The EDNA150 gyrostabilized optronic gimbal is INPIXAL’s 6″ turret. This drone payload is equipped with high-quality visible and infrared sensors and stands out for its onboard image processing capabilities.
Sensors
- EO HD sensor 1280x720p@25fps with 30x optical zoom (60x with digital zoom and SuperResolution)
- LWIR uncooled sensor 640×480 @25fps, 17° lens
- Laser Range Finder
Gimbal
- 3-axis electronic stabilization
- Weight : 1.4 kg (3 lbs)
- Diameter : 150 mm (6″)
- Non-ITAR
Embedded image processing
- Image enhancement
- Mobile object detection and tracking
- Geo tracking
- Video tracking
Plateforms : UAV, ULM, Hélicopters, planes …/…
